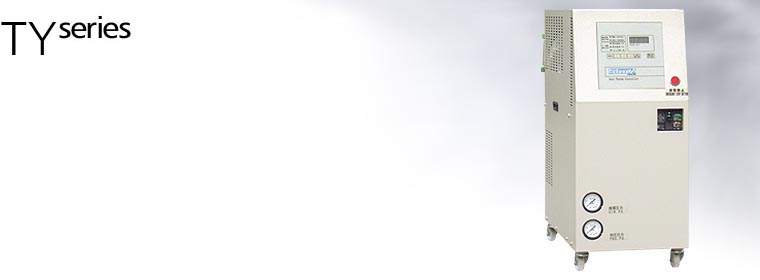

Pressurized Water Mold Temperature Controller

High temperature molding in a clean environment
that does not use heat medium oil

- Temperature setting to a max. 160℃
- Temperature setting accuracy of 0.1˚C
  using Pt100 temperature measuring resistor and PID accuracy control
- High energy-saving performance owing to an booster pump
  intermittently operated according to pressure demand
- Suited for high temperature molding of engineering plastic
  and super engineering plastics

The max. flowrate is given for a discharge pressure of 0.1 MPa.

■ Excellent cost-performance

Pressurizing and suctioning are automatically switched at the set temperature. And, the booster pump runs intermittently according to pressure. Also, proprietary structural design has downsized the booster pump and greatly reduced actual running time, whereby delivering excellent efficiency and cost-performance.

Supply water filter
Heat-resistant Teflon hose
Heat-resistant Teflon hose (Insulated)

■ Supply water filter

Installing this filter on the water supply (cooling water inlet) removes impurities from cooling water, which is effective towards protecting pumps and molds, and reducing trouble.

■ Heat-resistant Teflon hose

Heat-resistant Teflon hoses may be separately procured.

■ Heat-resistant Teflon hose (Insulated)

You can also choose insulated heat-resistant Teflon hose (withstands temperatures of 200˚C). An external polyester braid and lagging material produce an excellent insulation effect.
If using the TC series at 120 -- 150℃, use one of the above types of heat-resistant Teflon hose.
