STOLZ
All-in-One Type Dehumidifying Dryer

All-in-One machine mounted high performance dehumidifying dryer

- All-in-One integrated unit simplifies engineering plastics drying
- Equipped with maintenance-free heatless dehumidifier
  producing -50˚C ultra low dew-point
- Dehumidifying air compression and circulation (NR-5E)/
  Round system (NR-25E) for sealing against outside air
- High cleanliness inside of drum owing to #400 polished SUS304

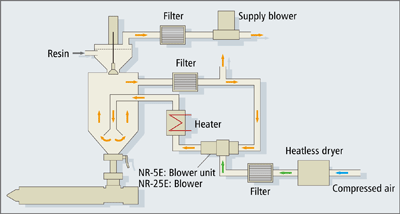

■ Dehumidifying air circulation system (NR-5E)

Ultra super low dew-point dehumidifying air circulation system is incorporated in a dryer unit. After dehumidifying air is purged into a heater unit, it circulates in a drum to effectively dry material.

■ Round System (NR-25E)

Round System supplies and circulates dehumidifying air of –50˚C generated by a heatless dry air unit through a closed system.


■  High functions in compact body

All-in-One integrated unit offers easy operation, space-less, energy saving, high productivity.


■ Superior drying capability

In terms of engineering plastic moldings require precision and stability, pressurized dehumidifying air circulation drying is far superior to conventional hot air drying.

LED alarm
Slidable attachment
Line filter
GF-10-001

■ LED alarm

LED alarm is installed onto a dryer controller and blinking/buzzer alert.

■ Slidable attachment

Slidable attachment to manually open/close material supply to an injection molding machine. This requires a special base unit.
Not applicable the NR-25E.

NR-5E
Outer dimensions (WxDxH)mm300 x 180 x 30
Base part outer dimensions (WxDxH)mm180 x 74 x 100
Base part bolt pitchmm60 x 50
Base part bolt standardM8 x 4
Port diametermm35

■ Line filter

Line filter can be installed.

Line filter GF/GX

NR-5ENR-25E
Line filterGF-10-001GF-20-001

■ Attachments with butterfly shutter

Sets of purpose-specific butterfly valves and SUS attachments are available.

■ Weekly timer

Machines can be started and stopped automatically by simply setting the days of the week and times that the machine should run.
